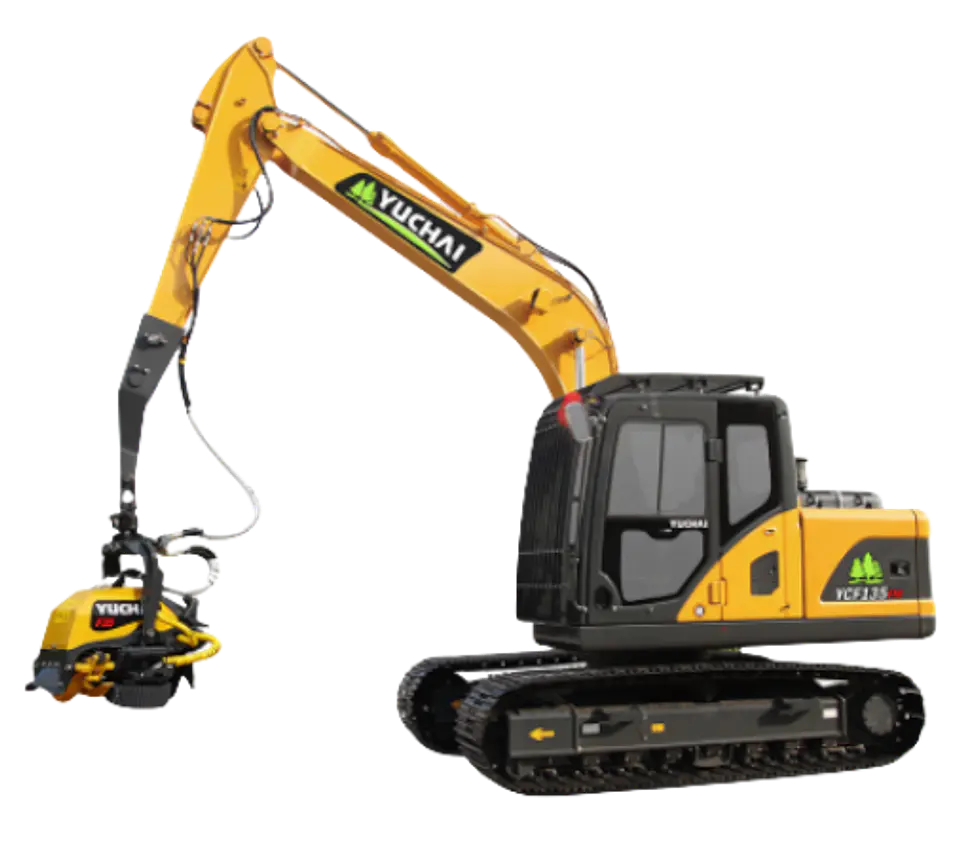

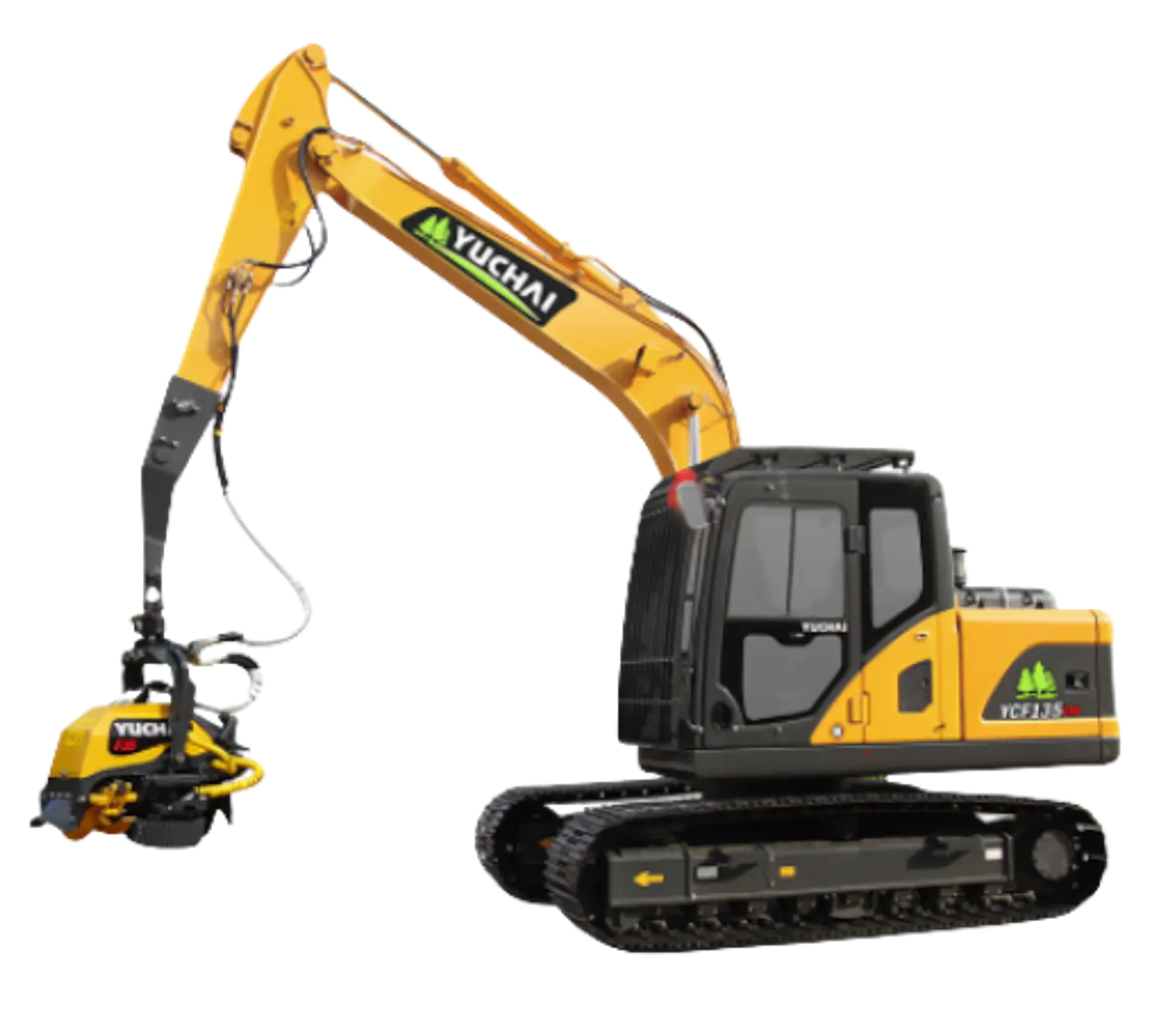

Forest Harvester YC135 2022

The tree harvester machine is designed for R&D in timber felling, it is widely used in North America, Europe, Australia and other places. A forestry harvester is convenient for your business and greatly reduces drudgery.

YC135 forestry harvester works perfectly in the field. All the technical characteristics of the machine have been perfected to serve the final objective: felling, processing and measuring the trunk. The hydraulic system, automation, engine features and other basic functions of the machine allow to maximize the performance of the machine.

It should be noted that the cabin is fortified with an iron and glass frame to provide comprehensive protection to the operator. Also the design is dust and water proof to improve life and reliability.

Parameters of YC135 Forest Harvester

basic parameter	Weight	13800kg
	Engine	CUMMINS INC.
	rated power	86/2200 kW/rpm
	cutting diameter max.	350mm
performance parameter	Max turning speed	12 r/min
	Speed	3.1/5.5km/h
	fuel tank capacity	270L
	Hydraulic tank capacity	105L
	grade capacity	35°
operation parameter	max radius	7819mm
	Max depth of operation	5500mm
	working height	8290mm
	tail deck turning radius	2250mm
transport dimension	Length	7780mm
	Broad	2600mm
	Height	2823mm
other parameter	track length	3695mm
	Via	2950mm
	track width	600mm
	Height between the undercarriage and the ground	415mm
