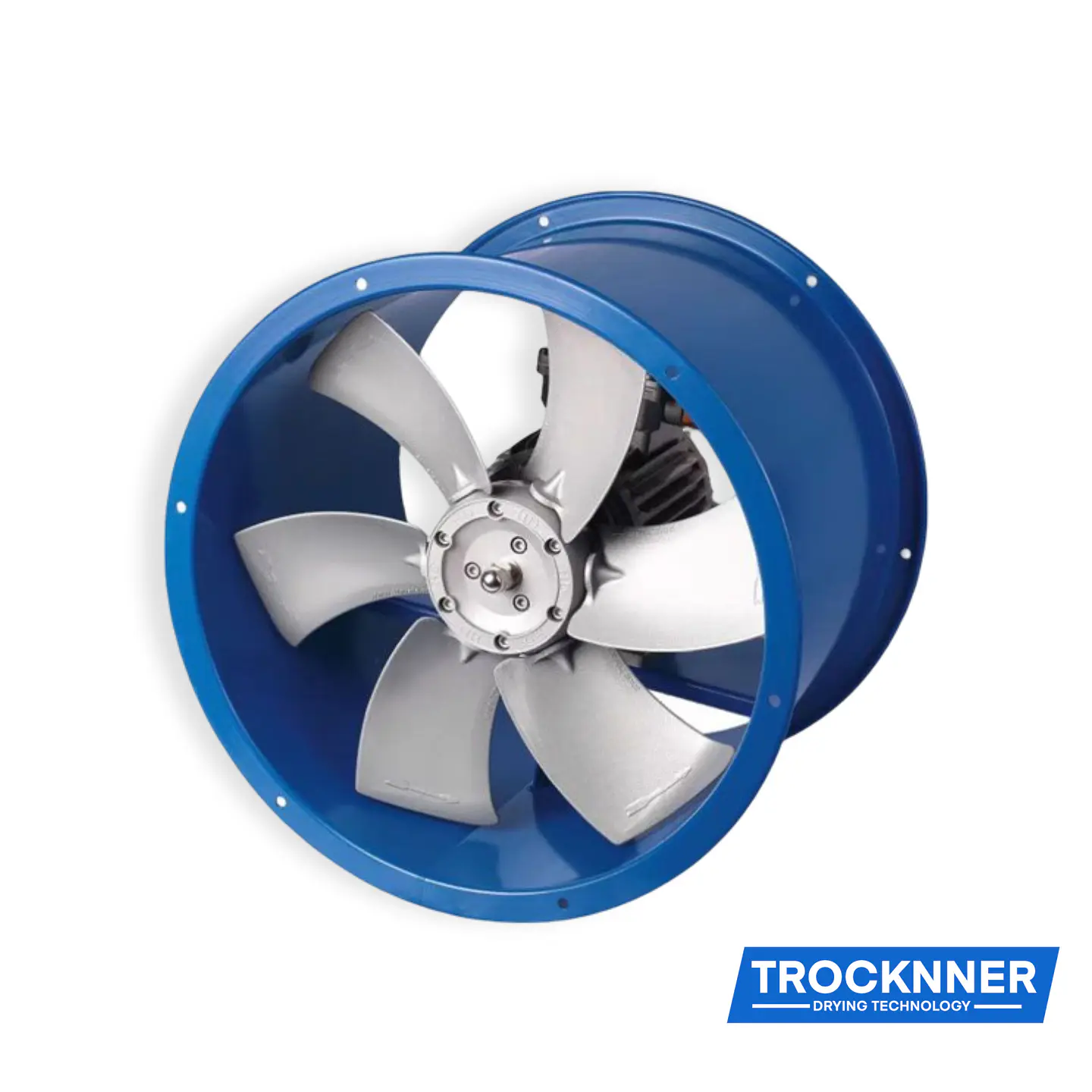

Fan Model - G

G-TRK series high temperature and high humidity axial fan is widely used in painting, smoke leaf baking, wood drying, rubber production and pharmaceutical production. As for ventilated exhaust, the fan can be used in many high temperature and high humidity environments, for example: factory, workshop, office, warehouse, basement. The axial fan is a one-way ventilated exhaust equipment, with novel structure and high performance. The fan has the characteristics of high temperature resistance, large air volume, high pressure, energy efficiency, low noise, convenient maintenance, etc. As a gas conveying fan without corrosive, palpable and grayscale gas, the gas has no more than 150mg/m³ of dust and hard particles.

As the diameter of the blades is different, there are 11 models, No. 2.5, 3, 3.5, 4, 5, 5.5, 6, 7, 8, 9 and 10. The angle of the fan can be adjusted according to customer requirements.

The fan blades can be directly connected to the motor. The circumferential speed of the impeller does not exceed the condition, there are three different rotation speeds: 2900 r/min, 1450 r/min, 960 r/min. When facing the air inlet, the blades rotate counterclockwise.

Because the frame size and blade diameter are different, the blade installation angle and main shaft speed are different. The air flow, air pressure and motor output are different.

Air pressure from 50Pa to 400Pa, air flow from 1000m³/h to 45,000m³/h (details according to performance table)

CONDITIONS APPLIED

Max. Ambient temperature: <130℃, relative humidity: ≤98%, in an environment with weak acid, weak alkali, steam and non-flammable gases, the motor can also be used in vacuum drying equipment according to specific conditions.

CHARACTERISTICS

Nominal voltage: 220/380 V

Nominal frequency: 50/60 Hz

Working method: continuous operation (S1)

Cooling method: IC411

Protection class: IP54/IP55

Insulation class: Class F (120 °C), Class H (180 °C)
